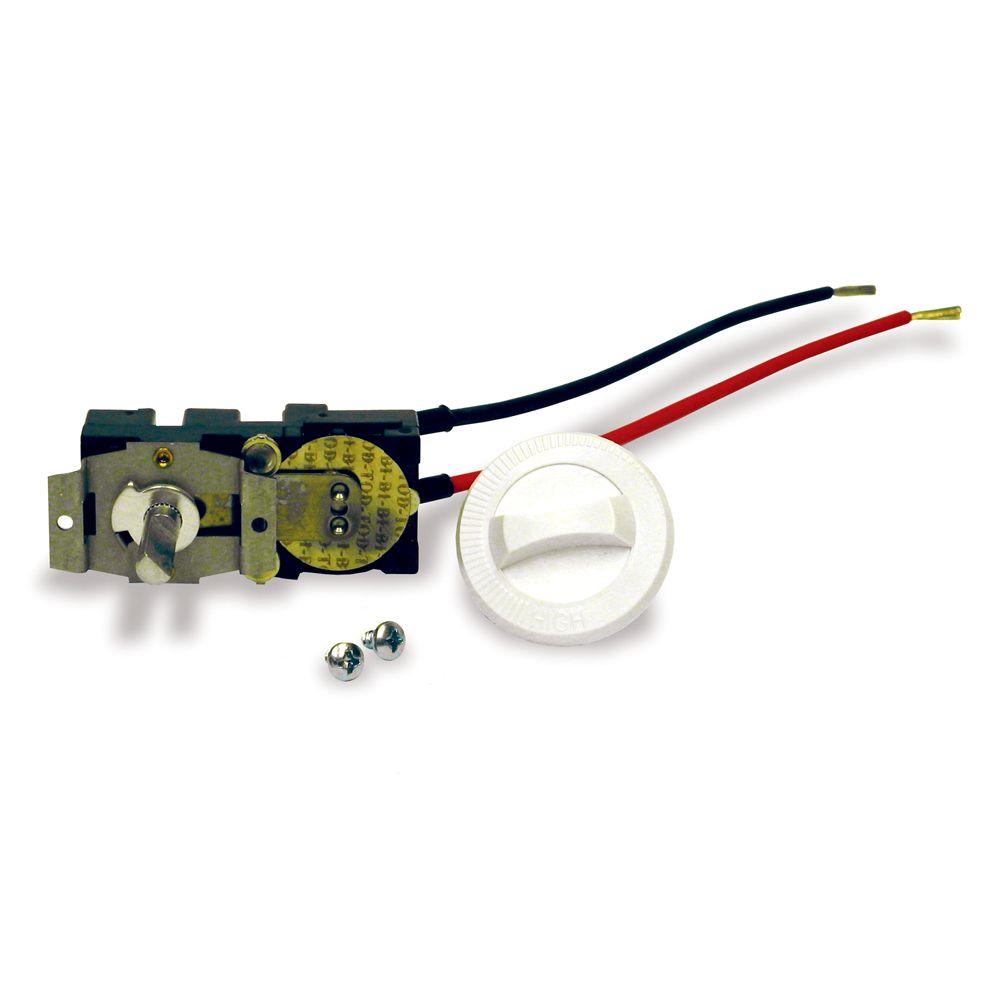

Dimplex Double Pole Wall Mount Thermostat Kit Td322w The
Dimplex double pole thermostat wiring diagram. Double pole thermostats break both sides of the power line. Connect the red line leads on the thermostat to the line leads from the power supply panel. The single pole thermostat operates either 120 vac or 240 vac electrical power rated at 5280 watts. Each component ought to be placed and connected with other parts in particular manner. The control knob will have an off position. L1 from power supply neutral from power supply line red load black wire connector thermostat heater 4.
Therefore all power to the heater is interrupted. Switching a single to a double pole thermostat duration. Wiring a new 240 volt circuit duration. Then remove the thermostat from the wall. It is usually attached to the wall and then with wire nuts to the wires coming. Using wire connectors connect a hot supply wire which is typically black to thermostat wire one typically it is marked l1 or line.
Connect the white supply wire coming from the circuit breaker to the same color supply wire feeding to the baseboard heater. This ensures that the td322w thermostat is used for controlling most all of the dimplex heater installations. Wire connector thermostat heater. It shows the components of the circuit as streamlined forms as well as the power as well as signal connections in between the tools. Collection of dimplex wiring diagram. A wiring diagram is a streamlined conventional pictorial depiction of an electric circuit.
Ppm production 41962 views. Connect the black load leads on the thermostat to the leads on the heater. It shows the parts of the circuit as streamlined forms and the power and also signal links in between the gadgets. Check with local buildingelectrical codes for requirements in your area. When control accessories are installed use wiring diagram supplied with the accessory. Following are examples of wiring diagrams with thermostat.
Double pole thermostat wiring diagram 2 pole thermostat wiring diagram 240v double pole thermostat wiring diagram cadet double pole thermostat wiring diagram every electrical structure consists of various unique parts. L1 l2 or n ground with double pole thermostat for left hand side connection use same logic load ground. Assortment of double pole thermostat wiring diagram. Figure 3 double pole thermostat. Matthias wandel 596044 views. Otherwise the arrangement wont function as it should be.
Double pole thermostat wiring diagram if you plan to to do work to your double pole thermostat or are installing baseboard heaters you will first need to shut off the power and follow basic electrical safety procedures. The td322w thermostat controls electrical power to dimplex heaters.
