The hid vertx evo v1000 intelligent controller is ip ready and minimizes bandwidth usage on an organizations network by connecting up to 20 downstream interface modules and 40 readers using a single ip address. Master controller interfacing to vertx v100 v200 and v300 door and io interface devices.
Hid Vertx Examined
Hid vertx v100 wiring diagram. If the v100 series panel will be attached to the end of the rs 485 bus install a terminating jumper to the in. The v100 door reader interface connects two access control card readers via wiegand or clock and data interface controlling either one or two doors. Supervised linear power supply with battery backup input surge protection and ac fail and battery low contact outputsseparate supervised dc supply with battery back up recommended for relay activated devices. The hid vertx products provide a complete and fully featured hardwarefirmware infrastructure for access control software host systems. Hid globals vertx evo open platform is flexible and scalable to permit economic and high. This applies to both direct poe power sourcing equipment endspan pse and poe injector midspan pse equipment.

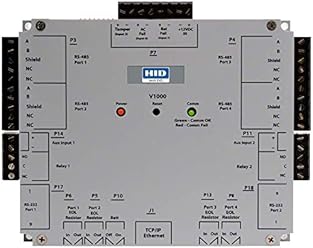

22 wiring vertx caution. Hid vertx evo v1000 networked controller. The v1000 connects to downstream interface modules hid vertx v100 v200 v300 over rs 485 and handles all access control decisions. Vertx evo v1000 is a non poe device. The vertx evo v1000 is a networked access controller with a multi door access control panel. Do not connect j1 ethernet port to a poe capable port.
Connectors on the vertx devices are positioned to be mirror images and are not interchangeable once the installation is complete. This vertx installation wiring diagram is intended as an example only and should not be interpreted as an hid corporation recommendation. The v1000 physical rs 485 port 1 and 2 reside on logical bus 1 p3 while port 3 and 4 reside on rs 485 logical bus 2 p4. 14 v100 v200 or v300. 60 ma at 9 18 vdcrecommended. The vertx devices can be stacked with or without the cover.
58 w x 4825 h x 1275 d 14732 mm x 12255 mm x 3238 mm weight. 136 oz 38 kg power supply requirements. Each rs 485 bus can support a maximum of 16 v100 series panels using one or two ports. Power and alarm input connections all vertx units. It reduces the burden on corporate local area networks lans by. Therefore you cannot unplug a connector from one side and plug it into the corresponding connector on the other side.
A4 34 wiring vertx evo warning. Make sure you position the vertx devices in such a way as to provide room for wiring air flow and cable runs. Wiring vertx evo vertx evo v1000 user guide 71000 901 rev. Do not remove the plastic base. Installation wiring diagram example 1 note.
