The other has many turns of round wire like a dynamo field coil. The original regulator incorporated a starter solonoid but they are hard to come by you could use an external solonoid.
Awz P70 Wiring Diagram Littlecartrader Little Car Trader
Dynastart wiring diagram. Bosch dynastart service manual. Note the brush wire routing as shown in the above photograph. Posted on wednesday november 10 2010 0705 am. Sign in recent site activity report abuse print page powered by google sites. Reported date of introduction 6th april 1959. Bmw isetta heinkel trojan goggomobile messerschmitt bubble cars berkeley microcars three wheelers motorcycles and watercraft.
Wiring diagram dynastart starter siba elektrik g m b h remy engineering cartoon png 700 500 free transpa sl 9569 dynastart wiring diagram schematic sl 9569 dynastart wiring diagram schematic wiring diagram dynastart starter siba elektrik g m b h remy engineering cartoon png 700 500 free transpa sl 9569 dynastart wiring diagram schematic sl 9569 dynastart wiring. Use cable ties or washers to make meter. Wiringdiagramdynastartlorespdf 726 k eric member username. This video screencast. For siba and bosch dynastarts as fitted to. Starter generator circuit youtube.

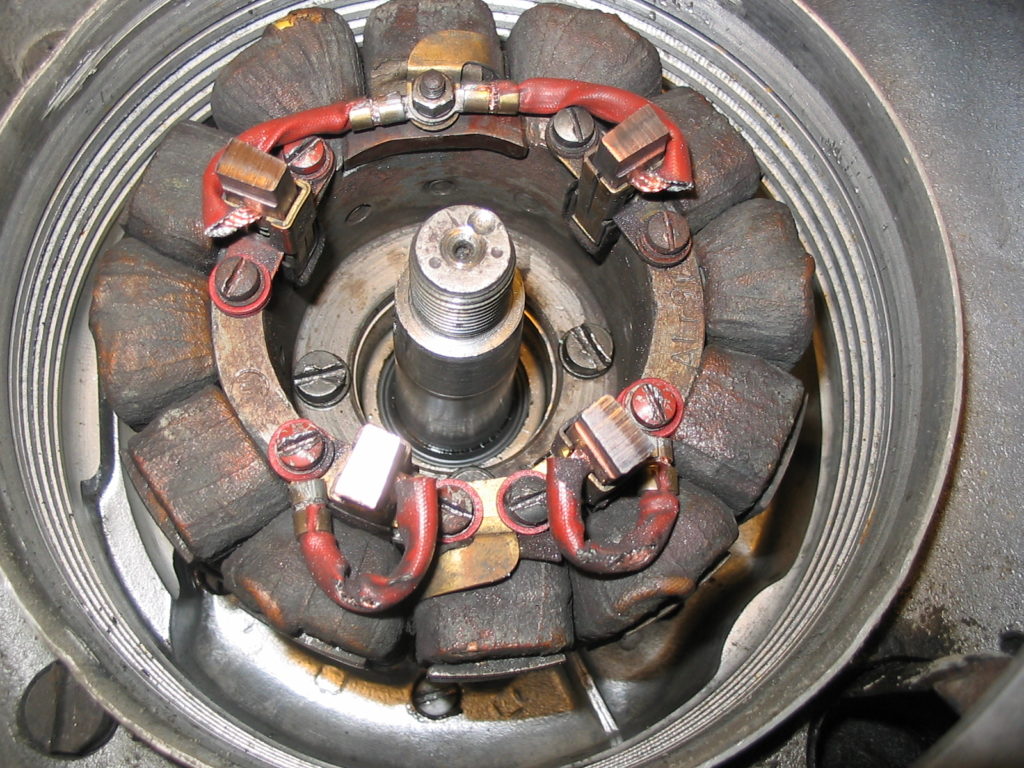

With the unit facing you the 3 terminals 5130 50 61d towards you the centre and right hand solenoids are the trouble prone regulator. The alternative to the unreliable regulator solenoid set up shown below. Siba brush assembly with insulating bushes shown below. Only measure voltage on the dynastart pin and chassis never elsewhere if you want to isolate the dynastart not add possibly defective wiring too. This video screencast was created with doceri on an ipad. One of the field windings has few turns of thick sectional copper like a starter motor.
The armature is wound like a starter motor armature. Siba dynastart wiring diagram. Bosch 00 10 35 0005 j 14v 11 a32 12v 1 ps as an alternative a relay can be added to use the militare regulator as indicated on the here below. Siba dynastart wiring diagram. You have to realise that the dynostart is a starter and dynamo. I wondered if anyone has a wiring diagram please dynsastarter available new from https.
Wiring diagram for kr200. The basic principle of a dynastart is that it has two sets of field windings which are taped together into one physical coil. This diagram shows a bosch dynastart system fitted to all kr200 models from chassis number 70643. Regolatore bosch cod 190 219 0015 used in combination with the bosch dynastart with the code. Doceri is free in the itunes app store.
