Uvpp power pack supplies 150ma hubbell building automation low voltage sensorsdevices requires 33ma each override switch optional note. This power pack is capable of switching 20a loads and features.
2014 Hba Product Catalog By Hubbell Building Automation Issuu

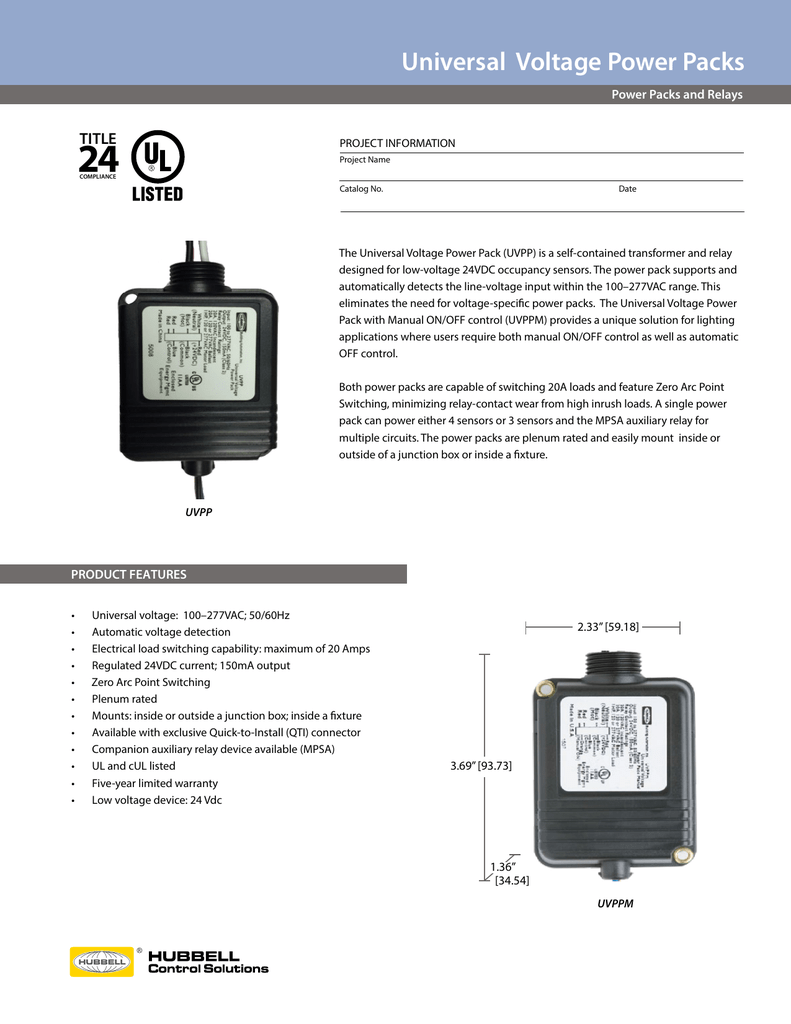

Hubbell uvpp wiring diagram. The mps auxiliary pack is a self contained transformer and relay an onoff switch controlled by a circuit designed for low voltage 24vdc occupancy sensors. The mps auxiliary packs require power form a uvpp series power pack to. The power pack supports and automatically detects the line voltage input within the 100 277 vac range. This eliminates the need for voltage specific power packs. Automatic on occupancy configuration and operation. The universal voltage power pack is a self contained transformer and relay an onoff switch controlled by a circuit designed for low voltage 24 vdc occupancy sensors.
The power pack supports and automatically detects the line voltage input within the 100 277 vac range. Uvpp universal voltage power pack 100 277vac 5060hz add qti to end of catalog number for optional quick to install connector. Cap off the red wire on all packs other than the first pack. This power pack is capable of switching 20a loads and features. Do not connect the red 24vdc wires together. 1do not attempt to power more than 4 devices be it sensors or slave packs from a single power pack.
Uvpp wiring diagram uvppm wiring diagram 72 00539. The maximum length of 18 22 awg wire between the control unit and associated sensors should not exceed 200ft. Uvpphd manual onoff operation 4a. Wiring diagram hubbell building automation inc. 1 circuit4 sensors with uvppdwg. Nalexproduct managementlvsdinstallsarchivelvsd mluvppmpsadiagram layout1 1 author.
Neutral hot red 24vdc black common blue control red red black white uvppm power pack supplies 150ma hubbell building automation low voltage sensorsdevices requires 33ma each orange manual on override. Connect the unit to the circuit as shown in the wiring diagram fig. When required for increased load capacity or to control multiple voltages with one sensor uvpp or uvppm power packs can be connected as shown in the wiring digram below. Wiring diagrams powered by 24vdc supplied by uvpp or uvppm uvpp wiring diagram red black blue power pack contacts rated for 20 amps. This eliminates the need for voltage specific power packs. The universal voltage power pack is a self contained transformer and relay an onoff switch controlled by a circuit designed for low voltage 24 vdc occupancy sensors.
An auxiliary pack is capable of switching a 15a mpsa or 20a mpshd loads and feature zero arc point switching minimizing relay contact wear from inrush loads. The device is factory configured to operate in automatic on mode.
